Creating Python Bindings for Native Code

Speaker: Gianluca Aguzzi, University of Bologna
Email: gianluca.aguzzi@unibo.it
Personal site: https://cric96.github.io/
PDF slides @ https://cric96.github.io/phd-course-python-binding/index.pdf

Outline

• How to handle (conceptually) Python-native interaction
• Main alternatives in the current landscape (see /base-binding-python)
  • For more details, please refer to this guide
• A guided example with raylib (see /raylib-binding-python)

Creating Bindings from Native Code

Agenda

• How to handle memory?

  • GC vs Manual Management

• How to manage different types?

  • Marshalling?

• What do you want to expose?

  • Low level or Pythonic?

Typically, the first two points are managed by the binding library, while the last one is up to the developer

What to Expose?

• It's important to define what you want to expose to the Python side
• Typically, native code isn't Pythonic, so you need to create a Pythonic interface (idiomatic)
• General guideline:
  • Native interface language-specific binding Idiomatic (language-based) interface
  • In Python, Flow: Native Direct Python Binding Pythonic Interface
  • Sometimes, the Python Binding is created automatically

What "Idiomatic" Means

• Idiomatic Code

  • Code that is natural to the target programming language
  • Follows design principles and community best practices
    • Namely, idioms (common patterns) and conventions (coding style)

• Examples

  • Effective Java: Effective Java
  • The Zen of Python: The Zen of Python

• Different Languages, Different Styles

  • Python: Readability, simplicity, elegance
  • C: Performance, control, efficiency

• Creating an Interface Map between idiomatic styles

Managing Different (Platform) Types

• Marshalling: the process of transforming data to pass between the two platforms

• Two mindsets:

  • C Focused on performance
  • Python Focused on simplicity

• Examples:

  • Integers: C has int, short, long, long long; Python has int
  • Floats: C has float, double; Python has float

• In the binding layer, you may need to handle these differences

Managing Memory

• Different paradigms:

  • C Manual memory management
  • Python Garbage collection

• Key challenges:

  • Memory ownership tracking
  • Cross-language memory management
  • Object lifetime synchronization

• Important considerations:

  • Memory allocation origin
  • Immutability concerns

Main Alternatives

Python offers several ways to create bindings with native code, from completely manual to automatic:

• ctypes: Built-in Python library for calling C functions directly
• cffi: Modern alternative to ctypes with cleaner API and better performance
• Cython: A language that makes writing C extensions for Python as easy as Python itself
• SWIG: A code generator for creating bindings in different languages (including Python)

Ctypes

• Built-in Python library for calling C functions directly

  • No need to write C code
  • No need to compile anything
  • Part of the Python standard library

• How it works:

  • Load a shared library
  • Wrap input for C functions (marshalling)
  • Wrap output from C functions (unmarshalling)

How to run

• Create a virtual environment

python -m venv venv
source venv/bin/activate

• Install the dependencies

pip install -r requirements.txt

• Build the shared library

invoke build-library

• Run the Python script

python ctypes_test.py

On Invoke

• Invoke is a Python library for managing tasks
• It's a simple way to define and run tasks
• It's similar to Makefiles, but in Python
• It's a good way to automate tasks in Python projects
• There are other alternatives like Ninja

How to use Invoke

• Install Invoke

pip install invoke

• Create a file called tasks.py with the following content:

from invoke import task

@task
def hello(c):
    print("Hello, world!")

• Run the task

invoke hello

Load a Shared Library

Ctypes needs to load a shared library to access C functions

import ctypes

# Load the shared library (local)
lib = ctypes.CDLL('path/to/shared/library.so')

# Find a library by name
lib = ctypes.CDLL(find_library("library"))

Wrap Input for C Functions

Giving this simple C function:

float cmult(int int_param, float float_param)

You can call it from Python like this:

# Define the function signature
cmult = lib.cmult
cmult.argtypes = [ctypes.c_int, ctypes.c_float]
cmult.restype = ctypes.c_float

# Call the function
result = cmult(2, 3.14)

Wrap structs

You can also wrap C structs in Python

typedef struct {
    int x;
    int y;
} Point;

In python you can define the struct like this:

class Point(ctypes.Structure):
    _fields_ = [('x', ctypes.c_int), ('y', ctypes.c_int)]

Pass structs to functions

You can pass structs to C functions

void move_point(Point p, int dx, int dy) {
    p.x += dx;
    p.y += dy;
}

In Python you can call it like this:

move_point = lib.move_point
move_point.argtypes = [Point, ctypes.c_int, ctypes.c_int]
move_point.restype = None

p = Point(1, 2)
move_point(p, 3, 4)

Pass pointer to functions

You can also pass pointers to C functions

void move_point(Point *p, int dx, int dy) {
    p->x += dx;
    p->y += dy;
}

In Python you can call it like this:

move_point = lib.move_point
move_point.argtypes = [ctypes.POINTER(Point), ctypes.c_int, ctypes.c_float]
move_point.restype = None
point = Point(1, 2)
move_point(ctypes.byref(point), 3, 4)

it is important to use ctypes.byref to pass a pointer to the struct

On Memory Management

• The type definitions created via ctypes are managed by Python

• When the object is no longer needed, Python will automatically free the memory

• However, if a C function allocates memory, you need to free it manually

  • Otherwise, you will have a memory leak

• Typical solution: expose a function to free the memory

void free_point(Point *p) {
    free(p);
}

Ctypes Summary

• Pros :
  • Part of the Python standard library
  • No need to write C code
  • No need to compile anything
• Cons :
  • Low level API
  • Limited functionality (Class? Templates?)

CFFI

• Modern alternative to ctypes with an auto-generated API
• Two main modes for creating bindings:
  • ABI mode: Call C functions directly
  • API mode: Use a C header file to generate a Python API

CFFI need to be installed with pip:

pip install cffi

CFFI Module Creation

• CFFI creates a full Python module
• Steps to create CFFI bindings:
  1. Write Python code for bindings
  2. Generate loadable module
  3. Import and use the module

Writing Bindings

import cffi
ffi = cffi.FFI()

# Process header file
ffi.cdef(header_content)

# Configure source
ffi.set_source(
    "module_name",
    '#include "library.h"',
    libraries=["library"],
    library_dirs=[dir_path],
    extra_link_args=["-Wl,-rpath,."]
)

Generating Module

ffi.compile()

• This will generate a shared library that can be imported in Python using the module name given in set_source

• You don't need to write any manual marshalling code, CFFI will handle it for you

• Unfortunately, CFFI doesn't support C++

  • Typical workaround: Create a C wrapper around the C++ code

Python wrapper

• Starting from the CFFI module, you can create a Python wrapper

class PointWrapper:
    def __init__(self, x=0, y=0):
        # Allocate memory for a C Point structure
        self._c_point = ffi.new("Point *")
        self.x = x
        self.y = y

    ## Utility methods

    # Functions from Point
    def move(self, dx, dy): #[...]

    def move_in_place(self, dx, dy): #[...]

    def __del__(self):
        ffi.release(self._c_point)  # Explicitly free memory

Alternatives?

• Cython : A language that makes writing C extensions for Python as easy as Python itself
  • Static compiler that converts Python code to C
  • Excellent performance for numerical computations
  • Can handle both Python and C code seamlessly
  • Direct support for C++ (unlike CFFI)
  • Popular in scientific computing (NumPy, SciPy)
  • Steeper learning curve than ctypes/CFFI

How it works?

• Write a .pyx file with a Python-like syntax
• Compile it with Cython
• Import the compiled module in Python

Example

# point.pyx
cdef struct Point:
    int x
    float y

cdef class PyPoint:
    cdef Point p

    def __init__(self, x=0, y=0.0):
        self.p.x = x
        self.p.y = y

    def move(self, dx, dy):
        self.p.x += dx
        self.p.y += dy

    @property
    def x(self):
        return self.p.x

    @property
    def y(self):
        return self.p.y

And compile with:

# setup.py
from setuptools import setup
from Cython.Build import cythonize

setup(
    ext_modules=cythonize("point.pyx")
)

or do it manually

invoke.run("cython --cplus -3 library.pyx")
invoke.run("g++ -shared -std=c++11 -fPIC $(python3-config --includes) -o library.so library.cpp")

Cython Summary

• Pros :
  • Excellent performance
  • Direct support for C++
  • Seamless integration with Python
• Cons :
  • Steeper learning curve
    • Requires to learn ``another'' language
  • Requires compilation step
  • Not as easy as ctypes/CFFI

SWIG

• Simplified Wrapper and Interface Generator:
• A code generator for creating bindings in different languages
  • It supports Python, Scala, Java, etc.
• Pros :
  • Supports multiple languages
  • Can generate bindings automatically
  • Can handle C++ code
• Cons :
  • Complex to use
  • Not as popular as ctypes/CFFI/Cython

How can decide which platform to use?

• ctypes You need a quick and dirty solution
  • you don't want to wrap the entire library
• cffi: You want an automatic solution with a clean API
  • you have a C header file
• Cython: You need performance and C++ support
  • you are willing to learn a new language
• SWIG: You need to support multiple languages

A Concrete Binding Example: Raylib

• Raylib is a simple and easy-to-use library to learn videogame programming

• Written in C with focus on clean and efficient API

• We will create a Python binding for Raylib using ctypes

Requirements

• Raylib installed on your system
  • follow the instructions here

First level: Native Interface

• First step: Create Python binding for Raylib using ctypes

• Start by selecting core functions to expose :

  • Window management
  • Drawing simple text
  • Clear the screen functionality

• Design principles in mind: KISS (Keep It Simple, Stupid)

  • map the main functions and structure from Raylib to Python

How to?

• Look at the Raylib documentation:
• Load the shared library

try:
    lib = ctypes.CDLL(ctypes.util.find_library("raylib"))
except OSError:
    print("Error loading the shared library, try to install it!")
    sys.exit(1)

• Extract some main structures

class Color(ctypes.Structure):
    _fields_ = [
        ("r", ctypes.c_ubyte),
        ("g", ctypes.c_ubyte),
        ("b", ctypes.c_ubyte),
        ("a", ctypes.c_ubyte)
    ]

How to?

• Define the functions you want to expose with ctypes
  • It's recommended to explicitly define parameters and return types

init_window = lib.InitWindow
init_window.argtypes = [ctypes.c_int, ctypes.c_int, ctypes.c_char_p]
init_window.restype = None

• Why Types?

  • Prevents errors in marshalling/unmarshalling
  • Helps avoid memory leaks
  • Makes code self-documenting and more readable
  • Remember: Clear type definitions are crucial for reliable native bindings!

Simple example

width = 800
height = 450
fps = 60
speed = 10
font_size = 40
text_y = 10

init_window(width, height, b"Hello, World!")
set_target_fps(fps)

dx = 0
while not window_should_close():
    begin_drawing()
    clear_background(BLACK)
    draw_text(b"Hello, World!", dx, text_y, font_size, LIGHTGRAY)
    end_drawing()
    dx = (dx + speed) % width
close_window()

Second level: Pythonic Interface

• Once we have the basic bindings, we can design a more Pythonic interface leveraging

  • Classes to encapsulate data and behavior
  • First-class functions to simplify the API

• In this case, I create the following classes:

  • Window: to manage the window
    • Everything about window management
  • Node: to manage the drawing
    • Everything about drawing and structure

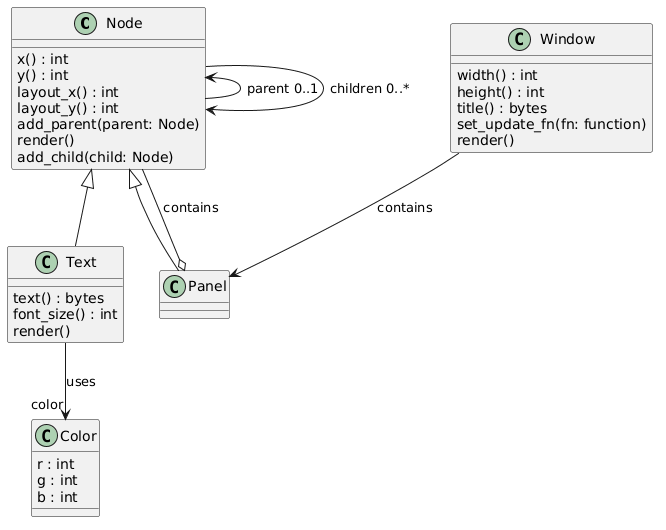

Overall Picture

Pythonic example

width = 800
height = 450
font_size = 40
text_y = 10
dx = 10

panel = dsl.Panel()
text = dsl.Text("Hello, World!", 0, 0, font_size, LIGHTGRAY)
text2 = dsl.Text("Hello, World!", 0, font_size + text_y, font_size, LIGHTGRAY)

def update():
    panel.x = (panel.x + random.randint(0, dx)) % width
    panel.y = (panel.y + random.randint(0, dx)) % height

panel.add_children([text, text2])
window = dsl.Window(width, height, "Hello, World!", panel)
window.update_fn = update
window.render()

Assignment

• Goal: Develop bindings between two different platforms, such as:

  • Native (C/C++) Python, or Native Kotlin, or Python Java

• Requirements:

  • Wrapped code containing at least one function and one type definition (class/interface). Refer to awesome C libraries for examples.
  • Create an idiomatic interface in the target language.

• Deliverables:

  • A GitHub repository containing the code and a report (README.md) that includes (at least):
    • Design choices explaining what makes the interface idiomatic
